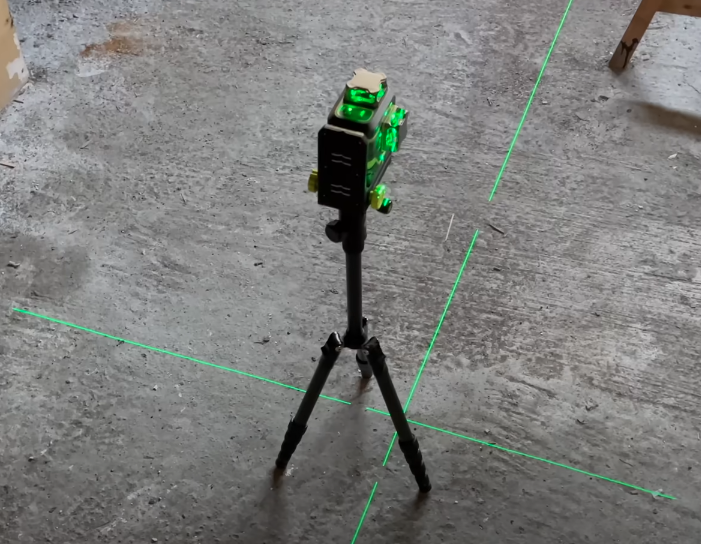

How To Check a Laser Level For Accuracy

Ensuring your laser level is accurate is crucial for precise measurements and reliable results. Here's a detailed guide on how to check the accuracy of your laser level:

1. Prepare the Area

  • Choose a Flat, Level Surface: Ideally, use a large, flat indoor space.
  • Mark Reference Points: Mark two points on a wall, approximately 10-20 feet apart, at the same height. Use a standard spirit level to ensure these points are level.

2. Initial Setup

  • Position the Laser Level: Place the laser level midway between the two points.
  • Turn On the Laser Level: Allow it to self-level or manually level it using the built-in vials.

3. Check the First Point

  • Align the Beam: Adjust the laser level so the beam hits one of the reference points.
  • Mark the Beam Position: Mark the position of the laser beam on the wall at the reference point.

4. Check the Second Point

  • Rotate the Laser Level: Without moving the laser level base, rotate it 180 degrees to point at the second reference point.
  • Mark the Beam Position: Mark the position of the laser beam on the wall at the second reference point.

5. Verify Accuracy

  • Measure the Difference: Measure the distance between the laser beam mark and the original reference points.
  • Acceptable Tolerance: Compare the difference to the manufacturer’s specified accuracy tolerance. For most laser levels, a deviation of less than 1/8 inch (3 mm) over 30 feet (10 meters) is generally acceptable.

6. Additional Checks

  • Vertical Accuracy: Place the laser level vertically and check its vertical line by marking a point at the top and bottom of a wall.
  • Cross Line Accuracy: If your laser level projects a cross line, check that the horizontal and vertical lines intersect at a 90-degree angle using a framing square.

7. Calibration

If you find that your laser level is out of the acceptable tolerance range, it may need calibration. Here’s what to do:

  • Consult the Manual: Refer to the user manual for calibration instructions specific to your model.
  • Professional Calibration: If you’re not confident in calibrating it yourself, take the laser level to a professional service center.

Tips for Maintaining Accuracy

  • Regular Checks: Perform these accuracy checks regularly, especially before starting a critical project.
  • Handle with Care: Avoid dropping or bumping the laser level as impacts can affect its calibration.
  • Store Properly: Keep the laser level in its protective case when not in use to prevent damage.

By following these steps, you can ensure your laser level remains accurate, providing reliable results for your projects.
